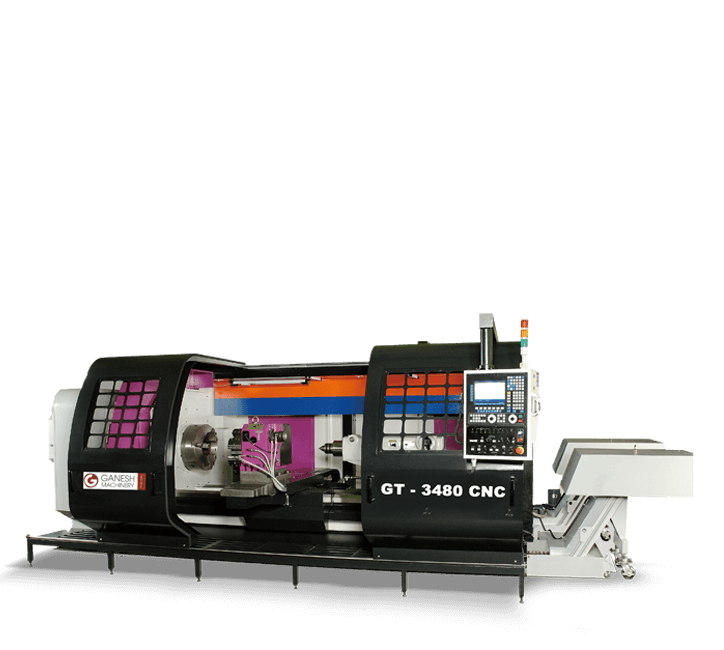

GANESH GTW-34/38/42 CNC machine

GTW-34/38/42 CNC

34 – 42” Swing Heavy Duty CNC Big Bore Lathes

  • LA2-11 Spindle with a 6-5/8” Bore (10” & 14” Spindle Bores Optional)
  • L5 – 550 RPM Spindle Speeds (4 - 440 RPM with 14” bore)
  • LA2-15 Spindle w/ 10” Bore, 18 - 600 RPM Optional
  • L3 - Automatically Selected Gear Ranges for High Torque
  • L8-Station Vertical Tool Turret
  • LRear Spindle Chuck Mount provided for long workpieces
$0.00 Down Financing

With Valley Financial Services

Icon of a gear

Machine Specifications

Capacity & Dimensions

Swing over Bed

34 1/4″

(870 mm) 42″ available

Swing over Cross Slide

20″

(510 mm) 27.94″ available

Center Height

17 5/8″

(450 mm) 21.6″ available

Distance between centers

78″ – 236″

(2,000 – 6,000 mm)

Bed Width

22″

(560 mm)

Spindle

Spindle Motor Horsepower (Fanuc 22 kw – 26 kw)

40 HP Peak

(35 HP 30 min duty rating)

Spindle Speeds (Low = 5 – 50 / High = 50 – 550)

5 – 5,550 RPM

(4 – 400 with 13.98″ spindle bore)

Spindle Speed Gear Ranges automatically selected

3 gear ranges

(infinitely variable speeds in each range)

Spindle Bore

6 5/8″

(170 mm) (Optional 10″ and 14″ available)

Spindle Nose

A2-11

(Optional A2-15, 255 mm bore / A2-20, 355 mm bore)

Axis

Cross Slide Travel

21.65″

(550 mm)

Cross Slide Surface Dimensions W x L

13″ x 39-3/8″

(330 mm x 1,000 mm)

X-Axis Ballscrew / Servo Motor

40 mm

Pitch 5 mm / 4 HP (3 kw) Servo motor

Z-Axis Ballscrew / Servo Motor

63 mm

Pitch 10 mm / 5.5 HP (4kw) Servo motor

X and Z Axis rapid feed rate

240″/ min

(6,000 mm / min)

X and Z Axis cutting feed rate

120″/ min

(3,000 mm / min)

Minimum input unit

0.0001″ (0.001 mm = 40 millionth of an inch)

Cross Slide Thrust

2,500 lbs

1,140 kg Force

Carriage Slide Thrust

5,500 lbs

2,500 kg Force

Tool Turret

8 Station tool turret with any mix of ID and OD tools

Turret Index Time

0.55 seconds station-to-Station (adjacent)

OD Tool Size (8 OD Tool Wedges included)

1.25″ x 1.25″

(32 mm x 32 mm)

ID Tool Holder Bore (4 ID Toolholders included)

2″ standard (50 mm optional)

Tailstock

Engraved with inch/metric quill graduations

Quill Diameter

6.5″

(165 mm)

Quill Stroke

9.8″

(250 mm)

Quill Taper

MT-6

Morse Taper #6

Body Movement

Hydraulic Motor Driven w/ Hydraulic Clamping

Specifications

Hydraulic Systems

5 HP  (3.7 kw) pump

Coolant Pump

3/4 HP

Electrical – FANUC 0i – TF Control, motors & drives

220 vac ±5%

Machines need stable 220 Volts, 3 Phase – Please use appropriate transformers or voltage stabilizers
