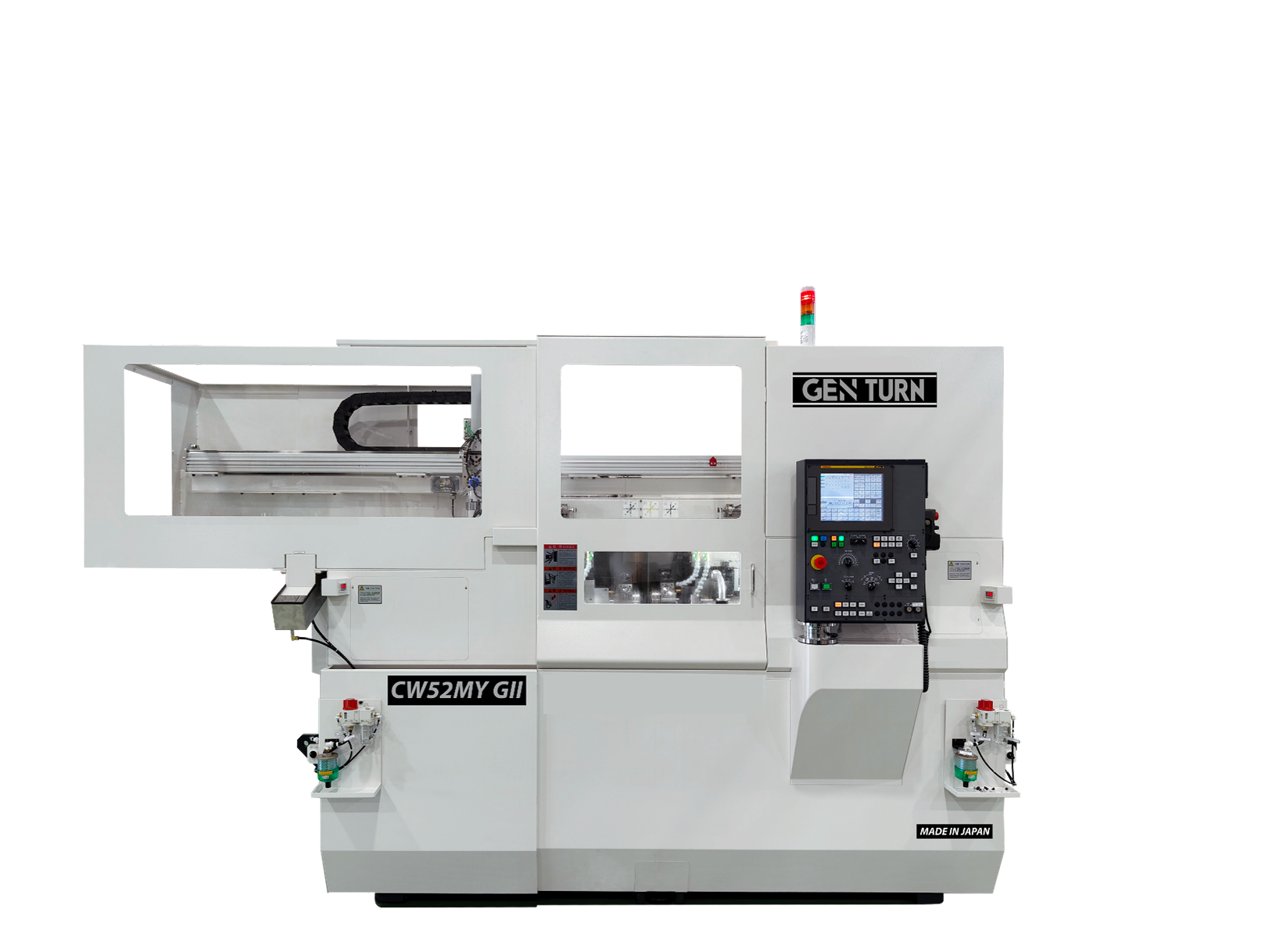

CW52MY GII
Twin Spindle Twin Turret with Dual “Y” Axis and Built in 3-KG Gantry Loader
- LFanuc OiTF Plus CNC Control
- LCustom Screen for Efficient Operation
- LMarposs High Precision Motorized Tool Setters
- LBarrel Height Chip Conveyor
- LDual 12-Station Live Tool Turrets
- LFull “Y” Axis On Both Turrets
- LHigh-speed gantry loader with a rack-and-pinion drive system
- LThree-axis controlled loader for easy position adjustment and alignment with both spindles
- LMaximum workpiece handling capacity: 3 kg
- LMotor-driven gripper rotation for easy angle adjustment and setup changes
- LCan perform either the same operation on both the left and right spindles or first and second operations
- LSuitable for automatic loading, unloading, and continuous production
- LOverhead gantry design minimizes the required floor space
- LEasy integration with workpiece stockers, measuring devices, cleaning units, and other peripheral equipment
$0.00 Down Financing
Machine Specifications
Main Spindle
| Maximum rpm | 5,000 RPM Built-in integral spindle motor |
| Spindle Motor | 12-HP (9.0 kW 30-minute duty rated) |
| Spindle Nose | A2-6 |
| Maximum Barstock | 2.04” (52 mm) |
| Spindle Through Hole | 2.36” (60 mm) |
| Maximum Chucking | 6” |
| Maximum Swing | 14.76” (375 mm) |
Sub Spindle
| Maximum rpm | 5,000 rpm |
| Spindle Motor | 12-HP (9.0 kW 30-minute duty rated) |
| Spindle Nose | A2-6 |
| Maximum Barstock | 2.04” (52 mm) |
| Spindle Through Hole | 2.36” (60 mm) |
| Maximum Chucking | 6” |
| Maximum Swing | 14.76” (375 mm) |
Axis Travels
| X-Axis Travel (both turrets) | 6.693” (170 mm) |
| Z-Axis Travel (both turrets) | 12.598” (320 mm) |
| X & Z Rapid Traverse Rates | 787 IPM (20 m/min) |
| Y-Axis Travel (both turrets) | 2.362” (60 mm, ± 30 mm = 1.181”) |
| Y-Axis Rapid Traverse Rate | 118 IPM (3 m/min) |
| X & Y Feed Motor Power | 1-HP (.75 kW) |
| Z Axis Feed Motor Power | 1.6-HP (1.2 kW) |
Tool Turret
| Number of Tool Stations | 12-Driven Tool Stations WTO Quick-Flex toolholders |
| Driven Tool Speed | 6,000 RPM (higher with speeder tools) |
| Driven Tool Power | 1.34-HP 1 kW |
| Indexing Drive | Servo Motor |
| Indexing Time | 1-Second |
| Coolant Pressure (both turrets) | 135 PSI |
Gantry Loader
| Maximum Weight (including gripper) | 3 KG |
| Number of Axis for Gantry | 3 Axis |
| Machine Sides for Gantry | Covers Both Left and Right Side |
Specifications
| Machine Weight | 11,220 lbs (5,100 kg) |
| Machine Dimensions | See Attached Drawing |
| Coolant Capacity | 80 gallons (300 liters) |
| Voltage Requirement | 220 volts +- 5% (40 kVA 3-PH) |
| Air Pressure Requirement | 0.4-0.5 MPs @ 150 L/min. |
Machines need a stable 220 Volts, 3 Phase – Please use appropriate transformers or voltage stabilizers
