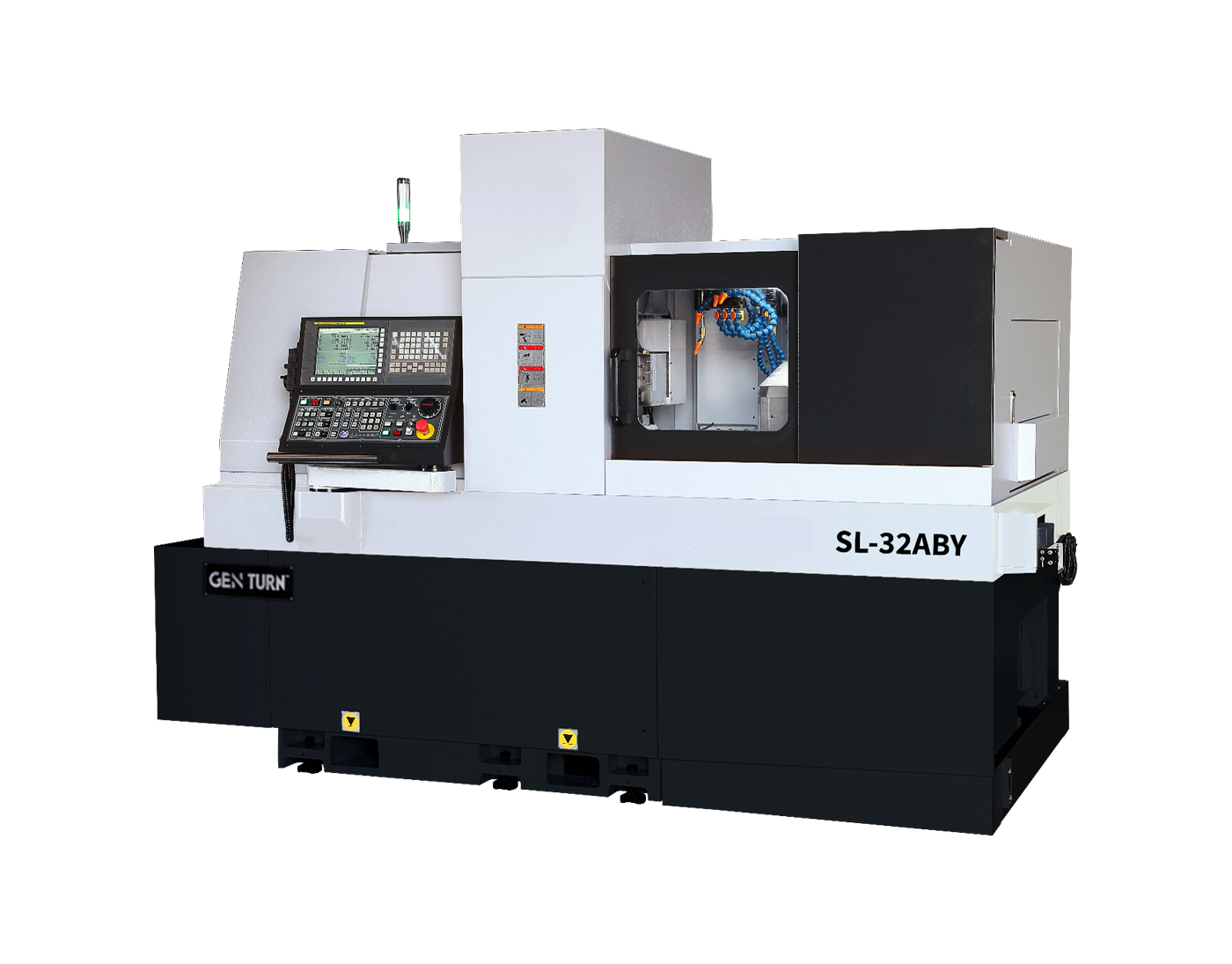

32mm Swiss with Full “B” Axis

O.D. Turning Tool Holders – S1

6 – 16 mm (5/8”) square shank tool holders

I.D. Internal Tool Holders – S1

5 – 25 mm shank round tool sleeve bores

I.D. Deep Hole Drill Positions – S1

2 – 25 mm shank round tool sleeve deep-hole drilling bores

Cross working live tools – S1

3 – ER-16 (5/8”) collet chuck spindles, 8,000 RPM

B-Axis tooling – works on both main & subspindle

4 – ER-16 (5/8”) live tools with a maximum speed of 5,000 RPM

Maximum Drilling / Tapping Capacity

Ø 13 mm drilling / M10 tapping

Cross Drilling / Tapping Capacity option

Ø 10 mm drilling capacity / M8 tapping

Sub spindle RPM / spindle bearing

6,000 RPM Integral spindle motor

Sub Spindle Servo Motor (2.5/5.5 kW)

7.5-Horsepower 15-minute duty-rated (3.5-HP constant duty-rated)

Collet Style for Sub-Spindle

TF 37

Maximum Barstock Diameter

Ø 1.259” (32 mm)

O.D. Turning Tool Holders – S2

4 – 16 mm (5/8”) square shank turning tool holders

I.D. Internal Tool Holders – S2

5 – 25 mm shank round tool bores (shared with main spindle)

I.D. Internal Tool Holders – S2

3 – ER-16 axial toolholders

Cross working live tools – S2

4 – ER-16 (5/8”) collet chuck spindles, 8,000 RPM

Subspindle axial live tools – S2

5 – ER-11 live tools, 8,000 RPM, (backside of main spindle axial tools)

Maximum Drilling / Tapping Capacity

10 mm drilling capacity / M8 tapping on sub-spindle

Maximum Driven Drilling / Tapping Capacity

10 mm drilling capacity / M8 tapping

X1, Y1, Z1, X2, Y2, Z2 Rapid Traverse Rate

1,181 IPM (30 m/minute)

X1, X2 Axis Motor Power

2-Horsepower (1.4 kW)

Y1, Y2 Axis Motor Power

2.1-Horsepower (1.6 kW)

Z1, Z2 Axis Motor Power

3.3-Horsepower (2.5 kW)

B – Axis Motor Power

3.3-Horsepower (2.5 kW)

Minimum input unit

0.0001” (0.001 mm = 40 millionths of an inch)

Machine Weight

10,960 lbs. (4,970 kgs)

Machine Dimensions (L x W x H)

122” x 81” x 83” (3108 x 2046 x 2100 mm) add for chip conveyor

Coolant Pump Power

1-3/4-Horsepowerp (1.3 kW) with flow confirmation monitor

Coolant Tank Capacity

106-gallons (401 L) (cutting oil only, no coolant)

Lubrication distribution

Automatic Way lube

Machine Power Requirements

220 vac ±5%, 80-amps, 30 kVA, 3-phase, 60Hz

Air Requirements

85-PSI at 6-CFM for parts catcher, parts ejector, & air blast
