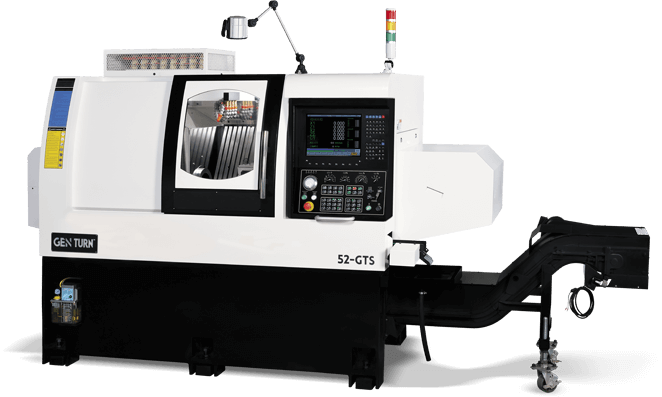

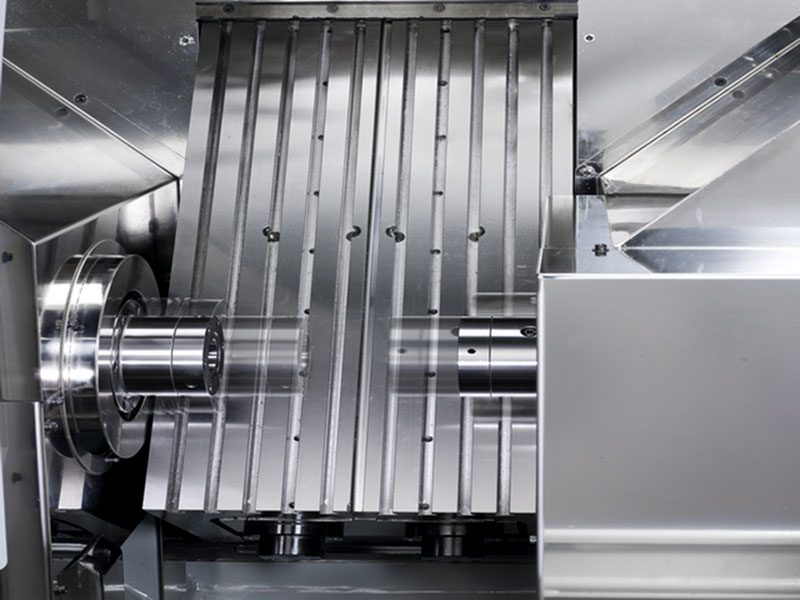

52-GTS
6-Axis CNC Dual Gang-Tooled Lathe
- L52mm 2” Bar Capacity
- LTwin 15-HP 6,000 RPM Opposed Spindles
- LDual Parallel Gang-Tooled Cross-Slides
- LSimultaneous Main & Sub-Spindle Machining
- L“C”-Axis on both spindles for Live Tooling Options
- LFaster than a Twin-Spindle Twin-Turret Lathe
$0.00 Down Financing
Machine Specifications
Main & Sub Spindle
|
Spindle Motors: 11kw 30-minute rated |
15 HP (Spindle Motor Chiller Included) |
|
Maximum RPM |
6,000 RPM with Spindle Orient |
|
Spindle Bearing |
5-Bearing Spindle, 3-Front Ball Bearings, 2-Rear |
|
Spindle Nose |
A2-5 |
|
Collet Nose |
Traub A-52 (3J, 22J, 16C, S20 adapters available) |
|
Drawtube ID |
2.086” (53mm) |
|
Collet Capacity |
2.047” (52mm) |
|
Spindle Center Height to Cross-Slide |
3.464” (88mm) |
|
Spindle Center Height to Floor |
42.2” (1070mm) |
Machine Axis
|
Axis Drives & Motors (1.0kw) |
1.35-HP Mitsubishi Mel-Pro Motors and Drives |
|
|
X-Axis Travel: Twin Cross-Slides |
13” (330mm) on Both Gang Slides |
|
|
Z-Axis Travel: Twin Opposed Spindles |
10.63” (270mm) (on Both Main and Subspindle) |
|
|
Axis Servo Motor Power |
X-Axis 2.0 HP (1.5 kW), Z-Axis 1.5 HP (1.0 kW) |
|
|
Rapid Travel Speed – X & Z |
1,181 IPM (30m/minute) |
|
|
Z-Axis Thrust |
714 lbs. Thrust (8574 in/lbs.) |
|
|
Minimum Input Unit |
0.0001” (0.001mm = 40 millionths of an inch) |
Tooling
|
OD Turning Tool Size |
3/4” Standard |
|
ID Turning Tool Size |
20mm (3/4” Available) |
|
Cross-Slide T-Slot dimensions |
5-T-Slots on 32mm Centers (10mm Slot, 18mm Base) |
Fluid Systems
|
Coolant Tank Capacity |
52 Gallons (210L) with Coolant Flow Monitor |
|
Coolant Pump |
Dual 3/4-HP, 45-PSI Pumps (for Main and Subspindle) |
|
Hydraulic System: (550psi) |
10 gallons (45 liters) ISO VG32 (Mobil DTE-24) |
|
Spindle Oil Cooler System |
5.5 gallons (25 liters) ISO 10 (Mobil Velocite No. 6) |
|
Way Lubrication Distribution (ISO-VG68) |
.5 gallons (2-liters) Distributed at 3-6 cc / 15-Minute Cycle |
Machine Dimensions
|
Length |
118” (2,980 mm) + 25″ Chip Conveyor |
|
Width |
54” (1,356 mm) + 21” Coolant Tank |
|
Height |
78” (1,760 mm) |
|
Net Weight |
9,922 lbs. (4,500 kg) |
Machine Requirements
|
Power Requirements |
220vac ±5%, 3-Phase, 60-Hz, 63 Amps, 24Kva |
|
Air Requirements |
85-psi, 10-cfm (Parts Catcher, Parts Ejector, Air Blast) |
