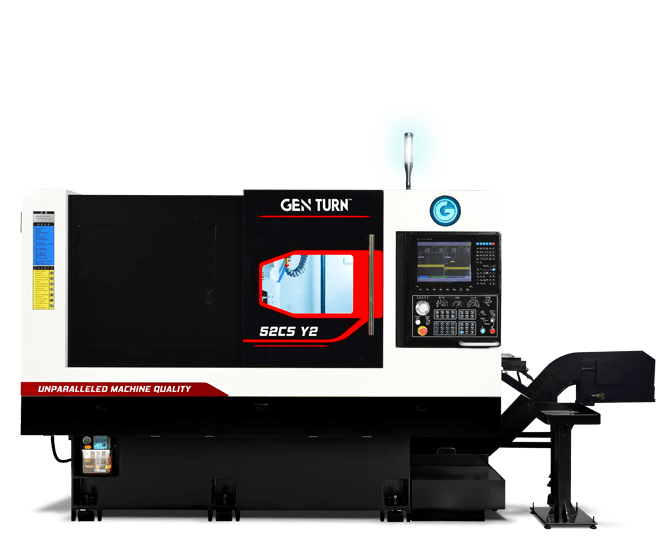

GENTURN 52-CS Y2 Machine

52-CS Y2

8-Axis CNC Swiss Machine with 2″ Bar Capacity

  • L2” Bar Capacity with 6,000 RPM Spindle
  • LFull “C” Axis on Main Spindle and Sub Spindle
  • LFull “Y” Axis on Main Spindle and Sub Spindle
  • L33 Total Tool Positions with 13 Live Tools
  • LSimultaneous Main and Sub-Spindle Machining
  • LParts Catcher and Chip Conveyor Standard
$0.00 Down Financing

With Valley Financial Services

GENTURN 52-CS Y2 Interior
Icon of a gear

Machine Specifications

Main Spindle

Maximum RPM / spindle bearing

6,000 RPM

Spindle Motor

10-HP (7.5kw)

Collet Nose / Spindle Bore

Traub A-52 / 52mm (uses TRB-52 collet)

Maximum Barstock Diameter

2” (51mm)

Maximum Cut Length

4.33” (110mm)

Remnant Length – with guide bushing / without

2.13” / 7.64” (54mm / 194mm) Spindle Center

Center Height

43.3” (1100mm)

Sub Spindle

Sub spindle RPM / spindle bearing

6,000 RPM / 4-bearing Quad-Duplex pair configuration

Spindle Motor

6-HP (4.4kw)

Collet Nose / Spindle Bore

Traub A-42 / 43mm (uses TRB-42 collet)

External Air Blast nozzle

Included for both main & subspindle

Finished Parts Ejector & air blast

Included for subspindle

Axis Specifications

X1-axis Travel

8.66” (220mm)

Y1-axis Travel (true Y-axis, not compound Y)

24.41” (620mm)

Z1-axis Travel

16.0” (406mm)

Travel

14.9” (380mm)

Y2-axis Travel (true Y-axis, not compound Y)

5.11” (130mm)

Z2-axis Travel

18.1” (460mm) Rapid

Traverse Rate – X1, X2, Y1, Z1, Z2

1,181 IPM (30 m/min) Rapid

Travers Rate – Y2

196 IPM (5 m/min)

Axis Drive Servo Horsepower: X1/Y1/Z1

1-3/4 / 1-3/4 / 1-1/8HP (1.3kw / 1.3kw / .85kw) Axis

Drive Servo Horsepower: X2/Y2/Z2

1-1/8 / 1.0 / 1-1/8HP (.85kw /.75kw / .85kw)

Minimum input unit

0.0001” (0.001mm = 40 millionths inch)

Tooling

Main 33-Tool Positions Standard

5-ER-20 cross slide live tools, 6,000 rpm, 2.0 HP (1.5kw)

Main Spindle Cross slide radial live tools

3-ER-20 front slide live tools, 6,000 rpm, 1.0 HP (0.75kw)

Main Spindle Front slide axial live tools

6 (5x 5/8” + 1x 3/4”) (5x16mm) + (1x20mm)

Spindle OD Turning Tool Positions

5 ID Tool Bores (25mm)

Main Spindle ID Turning Tool Positions

5 ID Tool Bores (25mm) (back of main tool bores)

Subspindle ID Turning Tool Positions

4 ID Tool Bores (static holders in subspindle tool block)

Turning Tool Positions

8-ER-20 (can add 4 more) 6,000 rpm, 4.0 HP (3kw)

Subspindle Back slide axial live tools

(1 radial live tool can be substituted on subspindle tool block)

Machine Dimensions

Machine Length

113” add 31” for chip conveyor

Machine Depth

71” (1803mm)

Machine Height

78” (1977mm)

Machine Weight

13,880lbs (6,300kgs)

Coolant Pump

Dual 50psi 1-HP Coolant Pumps for main and subspindle

Coolant Tank Capacity

63-gallon coolant tank, with coolant flow confirmation sensor

Lubrication distribution

Way lube distributed at 3-6 cc / 15 minute cycle

Hydraulic System

power / capacity 1-HP / 12-gallons (0.75kw / 46L)

Machine Power Requirements

220vac ±5%, 35kva, 3-phase, 92 amps, 60Hz

Air Requirements

85-PSI at 10-CFM for parts catcher, parts ejector, & air blast
